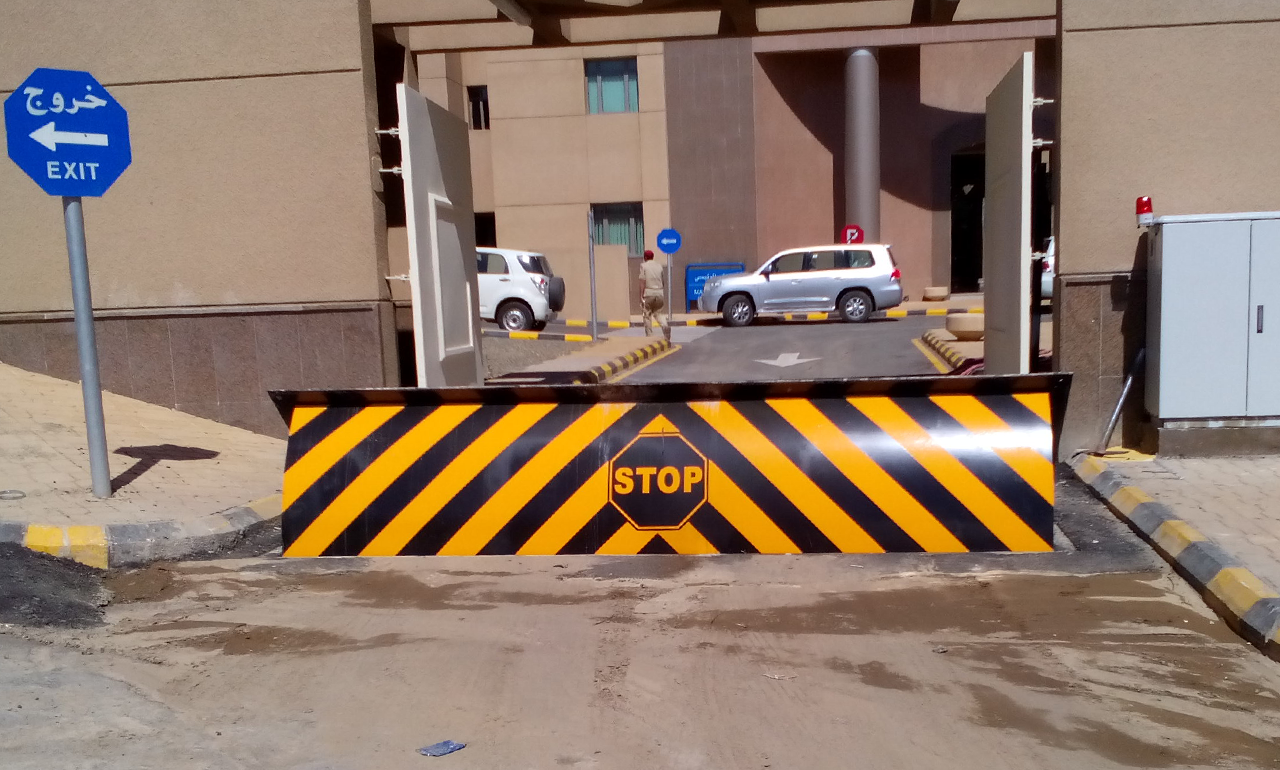

The GSR-SX Series High Impact Rated Hydraulic Shallow Mount Road Blockers are designed to protect sensitive areas that require a high level of security.
The product has proven its durability and stopping power through computer-aided element analysis tests, providing compliance with IWA14-1:2013, PAS68, and ASTM M50 standards at P1 level with an N3C vehicle.
With its powerful hydraulic unit, the GSR-SX Series “Shallow Mount” Road Blocker offers reliable solutions for securing sensitive areas against ram attacks.
Suitable for high-frequency, heavy-duty operation, the GSR-SX Series Road Blocker also provides easy and fast installation for projects with construction limits and time constraints.
Please fill in our request a quote form to request further information and pricing for the item you are looking at.
A member of our team will endeavour to get back to you as soon as possible.
Road Blocker Structure is made out of heavy gauge material. Underground case is 400 NPU Steel. Inside the blocking wedge there are 8 sets of 3-up hinge bars, constructed from 40x120 mm and 20x120 mm Steel Plates, which support the structure against impact.
Designed for intense industrial usage with 100% Duty Cycle, by powerful HPU, strong wedge and durable hydraulic lift piston. With its 5.5 kW powerful motor GSR-SX Series are capable to complete up or down movement in 3-4 seconds without any limitation of daily usage.
GSR-SX Series possess two advanced features which extend the usage life of the system: Position Detection with weather proof proximity limit sensors which immediately stops the motor operation at limit points. Descending Speed at Closing and Opening Points which provides a silent operation.
GSR-SX Series Blockers are designed by using the cutting-edge manufacturing computer technology to meet K12 level of DOS SD-STD-02.01 standards. Computer aided element tests have proved that GSR-SX Series withstands an impact force of 7,500 kg @ 80 km/h .
Ease of integration with all access control equipment through its Schneider SR2 A201BD PLC unit which possesses 12 Inputs and 8 Outputs. All electronic equipment are Schneider branded with the highest reliability available in the market.
ISO 9001:2008, CE
2 Years
CCTV and ANPR camera's can be supplied and installed as part of the project.
Designed for ease of operation where security personnel is responsible of opening the turnstile for passengers; wired and remote options available.
